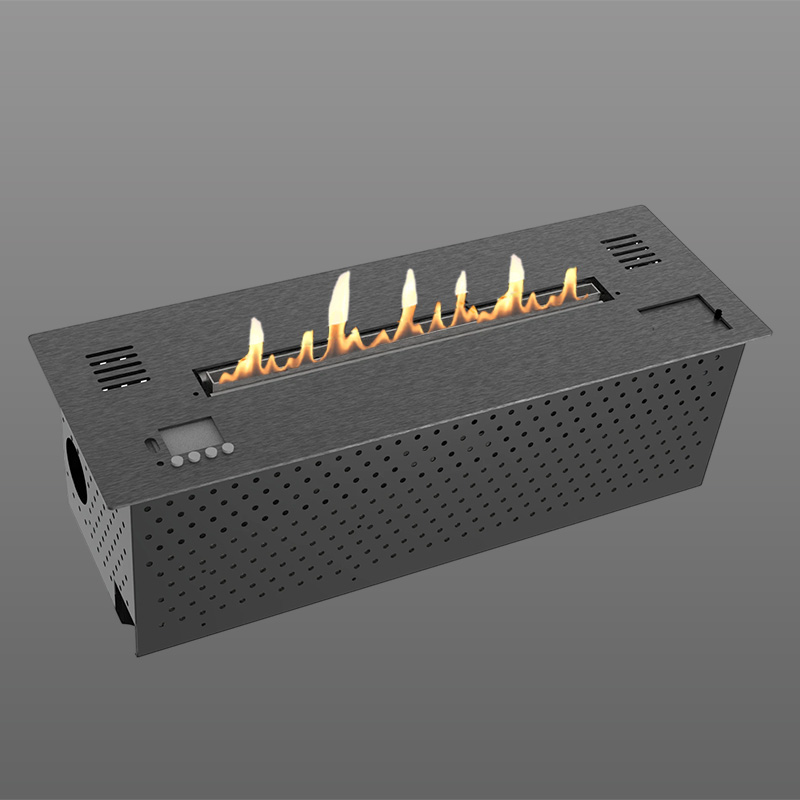

Ethanol Flame Burner 680mm Intelligent Fireplace AF66

1. Key Features: Smart, Safe, and Customizable

• 3-Speed Flame Control: Adjust flame intensity from low (gentle glow) to high (vibrant blaze) via remote or on-unit buttons, matching your mood or space needs.
• Multi-Layer Safety Protection: Equipped with CO₂ detectors, heat sensors, burner level monitors, tank level alerts, and leak detectors. Automatically shuts down in abnormal operations to ensure safety.
• Electronic Convenience: Includes automatic ignition, LED display (shows operating time/error messages with beeps), and a 12V adapter (compatible with 100-240V, 50-60Hz).
• Durable Build: 3mm thick stainless steel top plate and Swedish medical-grade electric pump for reliable, long-term use.

2. Technical Specifications

3. Safety Dimensions (Non-Flammable Materials)

• Above the Fireplace: 50cm (19.7in)
• Edges (Sides): 7cm (2.75in)
• Back Side: 7cm (2.75in)
• Housing Size: 640mm (L) × 220mm (W) × 260mm (D) (25.2in × 8.66in × 10.24in)

4. Easy Operation Guide

Step 1: Power Up

Connect the included 12V adapter to a 100-240V power source. Wait 3 seconds before operating.

Step 2: Connadh & Water Refill

• Automatic Injection: Connect plastic tubes to external ethanol/water tanks. Press the corresponding button for 3 seconds (light turns blue). Pump stops automatically when tanks are full (light turns off).
• Manual Injection: Press the tank door button/remote to unlock, open immediately, and fill. Close the door— it locks automatically after 5 seconds.

Step 3: Control the Flame

• On/Off: Hold the on-unit button for 3 seconds or use the remote.
• Flame Speed: Press "Flame High" (1→2→3) neo "Flame Low" (3→2→1) to adjust.
• Timer: Set 2h/4h/6h/8h auto-shutoff via the remote. Press the same timer button again to cancel.


  5. Why Choose AF66?

  • No Chimney Needed: Clean, smokeless bioethanol fuel eliminates the need for complex installations.
  • Energy-Efficient: Low fuel consumption (0.3-0.6L/hour) saves costs while providing consistent warmth.
  • Versatile Design: Fits modern, industrial, or traditional decor—ideal for living rooms, bedrooms, hotels, or cafes.
  • Global Compliance: Meets CE/FCC/IC safety standards, ensuring quality and reliability worldwide.


    Cuir fios & Support

    Art Fireplace Technology Limited is committed to delivering top-tier intelligent fireplaces. For inquiries, installation help, or spare parts:
    • Official Websites: www.art-fire.com | www.art-fireplace.com
    • Post-d: [email protected]
    • Seòladh: FLAT/RM 705, 7/F, FA YUEN COMM BLDG, NO.75 FA YUEN STREET, MONG KOK, KLN, HK
    • Follow Us: Facebook (artfireplace) | YouTube (@artfireplace)



    Ceistean Cumanta

    C:Dè mu dheidhinn òrdugh sampall?

    A:Gabhaidh sinn ri sampall òrdugh mus riochdachadh, tha e na cheum riatanach mus gluais thu gu co-obrachadh soirbheachail, na bi leisg fios a chuir thugainn airson sin.

    C: Dè an làimhseachadh uachdar as cumanta airson pàirtean meatailt?

    A: Mullach crìochnachaidh Matt Black

    C: Chan eil sinn eòlach air còmhdhail eadar-nàiseanta, an làimhsich thu a h-uile rud loidsigeach?

    A: Gu cinnteach. Bheir mòran bhliadhnaichean de eòlas agus neach-adhartachaidh co-obrachail fad-ùine làn thaic dhuinn air. Chan urrainn dhut ach an ceann-latha lìbhrigidh innse dhuinn, agus an uairsin gheibh thu am bathar san oifis / dachaigh. Tha draghan eile gar fàgail.

    C:Dè an urras?

    A: Tha na toraidhean againn uile a’ tighinn le deagh staid, deiseil airson a chleachdadh.
    Tha sinn a 'gealltainn a h-uile neach-dèiligidh 3 ùine barantais fad bhliadhnaichean.
    Ma tha na stuthan againn air am milleadh no nach gabh an càradh, cuiridh sinn an aon fhear ùr thugad an-asgaidh airson fear eile. Thèid a h-uile pàirt a bharrachd a lìbhrigeadh dhut an-asgaidh.
    Tha na toraidhean againn uile den chàileachd as àirde.
