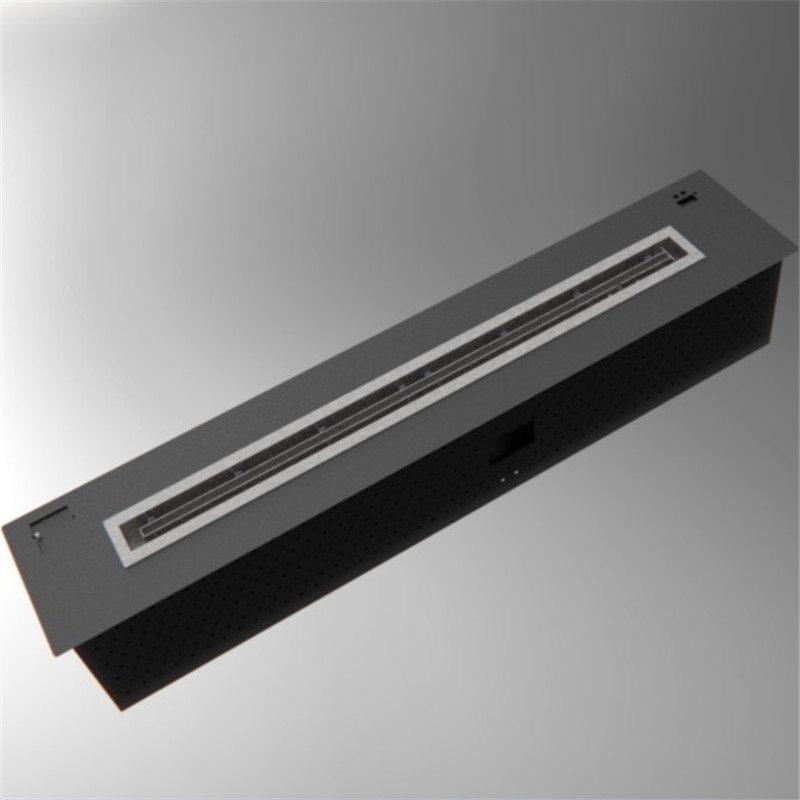

Smart Ethanol Burner AF120
Smart Ethanol Burner AF120 Product introduction:
The AF120 with 48inch long electronic remote controlled smart ethanol burner:
Inspirations ecological fire: the mix of the cultures and the atmospheres. This will be a great idea for super interior designs!
maelezo ya bidhaa:
| Chapa | Mahali pa moto wa sanaa |
| Mfano | AF120 |
| Dimension | 1220mm/LX240mm/WX215mm |
| Udhibiti wa Kijijini | Ndiyo |
| Matumizi | Katika vyumba vya chini 35 m2 |
| Uzito | 38.00kilo |
| Uwezo | 14.5Lita |
| Mafuta Matumizi | 1.2Lita/Saa |
| Pato la Joto | 4950Wati |
| Urefu wa Moto | 934mm / 36.77inchi |
| Urefu wa Moto | 200mm / 7.87inchi |
| Bila hewa | Ndiyo |
| Kipimo cha kukata | 1180Urefu wa mm / 46.46inchi |
| Kipimo cha kukata | 220Upana wa mm / 8.66inchi |
| Kipimo cha kukata | 250mm kwa kina / 9.85inchi |
| Faida | Kizimia/Kizima kiotomatiki, Juu ya ulinzi wa joto, Ulinzi wa kutetemeka,Sensor ya C02, Ulinzi dhidi ya mtiririko, Mtoto-kufuli |
| Matumizi | Hoteli Lobby, Jumba la Maonyesho , Baa, Ofisi,Villa… |
| Uthibitisho | CE/FCC/IC |
AF120 Model Featured Functions:
1.Kutoweka kwa kichoma ethanoli au kuwashwa kwa akili kwa kuamuru kwa bodi ya umeme na Kitufe KUWASHA/KUZIMA na kidhibiti cha mbali.
2.Sindano ya kujaza kiotomatiki na kazi ya sindano ya kujaza mwongozo kwa burner.
3. Nyenzo katika pua na MDF.
4. Tangi tofauti la bio-ethanol na makaa ya moto.
5. Kigunduzi cha infrared cha usalama cha Co2 ambacho huzima moto endapo utafikia viwango visivyoidhinishwa.
6.Ondosha kazi ikiwa burner inahamishwa na nguvu ya nje.
7. Pampu ya umeme ya moja kwa moja ya kujaza tray ya mwako ya burner.
8. Na vifaa vya kugundua joto vya elektroniki, itatoweka kiotomatiki halijoto inapofikia viwango visivyoidhinishwa.
9. Chaja ya AC au chaja ya betri yenye kipakiaji cha betri.
10. Na athari ya sauti.
11. Kazi ya Kufuli ya Mtoto.
User Guider and Data Sheet On Request：
Among the best in Art bioethanol burner designs, the AF120 Remote Controlled Electronic Bio Ethanol Burner Inserts is favored by architects, contractors and high-end designers and offers the discerning client unprecedented quality and safety. In addition to the same vent-free and clean burning flames as manual ethanol fireplace inserts, this art-Fire bio ethanol burner offers much more for both residential and commercial applications!!
Remote Control Capability. Due to its electronic operation, powered by a twelve-volt power source, this ethanol fireplace insert may be ignited and extinguished through an on/off switch located on the burner itself, a one-button remote control or through your smart phone by integrating with your Smart Home System.
On-Board Safety Monitoring. The motherboard of this fireplace insert is safety-central. Constantly self-evaluating its operation, this intelligent burner reacts to any condition that appears atypical. Should it sense an excess amount of carbon dioxide emission or heat output, it will automatically cease operation, extinguish the flame and maintain the lock mechanism of the fuel chamber. Additionally, it will self-extinguish should it sense seismic motion or level of tilt making it a shock-proof device. Fuel and battery levels are also constantly evaluated for optimal performance and will give notification through the burner’s LED display, which will indicate operation times and alert you by sound and error message should an event occur.
Sturdy Construction.
Constructed of Grade 304 stainless steel, the ethanol burner is corrosion resistant and exhibits excellent resistance to atmospheric, chemical and other exposures. Its top plate measures three millimeters in thickness (3/32 inches). This allows sturdiness, yet promotes a low profile. For added safety, the ethanol fireplace AF120 insert offers insulated double hearth construction.
Separate Fuel Reservoir and Burner Tray. Continuing with the unprecedented safety features of this ethanol burner, excess fuel is housed in a sealed reservoir. This not only prevents fuel evaporation and the aromatic release of the raw ethanol, but lessens the amount of “exposed” fuel at any given time. Through a medical grade fuel pump, the ethanol is delivered into the burner tray. Only allowing the burner tray to manage a few centiliters of ethanol fuel at a given time promotes additional safety and minimizes the risk of fire-related dangers.
Bidhaa zote za mfano lazima zipitie 4 hundi katika mchakato mzima:
- Ukaguzi wa malighafi
- Katika ukaguzi wa usindikaji
- Ukaguzi wa mwisho
- Ukaguzi unaomaliza muda wake
Maswali Yanayoulizwa Mara kwa Mara:
Q: Jinsi ya kuanzisha mradi?
A: Ili kuanza mradi wako, tafadhali tutumie michoro ya kubuni na orodha ya nyenzo, wingi na kumaliza. Kisha, utapata nukuu kutoka kwetu ndani 24 masaa.
Q: Ambayo matibabu ya uso ni ya kawaida kwa sehemu za chuma?
A: Kusafisha, Oksidi Nyeusi , Anodized, Mipako ya Poda, Ulipuaji mchanga, Uchoraji , kila aina ya plating(mchovyo wa shaba, uwekaji wa chrome, uchongaji wa nikeli, dhahabu mchovyo, uchongaji fedha...)…
Q: Hatujui usafiri wa kimataifa, utashughulikia mambo yote ya vifaa?
A: Hakika. Uzoefu wa miaka mingi na msambazaji aliyeshirikiwa kwa muda mrefu atatusaidia kikamilifu juu yake. Unaweza tu kutujulisha tarehe ya kujifungua, na kisha utapokea bidhaa ofisini/nyumbani. Wasiwasi wengine waachie sisi.
Q: Hatujui usafiri wa kimataifa, utashughulikia mambo yote ya vifaa?
A: Hakika. Uzoefu wa miaka mingi na msambazaji aliyeshirikiwa kwa muda mrefu atatusaidia kikamilifu juu yake. Unaweza tu kutujulisha tarehe ya kujifungua, na kisha utapokea bidhaa ofisini/nyumbani. Wasiwasi wengine waachie sisi.
